Beginner’s Guide to React Router 4

React is a JavaScript library for building user interfaces. With the React paradigm, every piece of the UI is a component that manages it's on self-contained state (data) and functions.

React like other front-end JavaScript frameworks are useful for creating Single Page Applications (SPAs). These are web apps that do not need a full page reload on change of view, instead, they swap views into or out from a section of the page as the user navigates through the app.

Though SPAs provide a fluid navigation experience for users, routing features of traditional websites are expected. For instance:

• every view on the screen should have its own specific URL so I can bookmark the page.
• The forward and back button should move me forward or backward in my browsing history.
• Nested views and those with parameters should be supported. e.g example.com/products/shoes/101

In the React community, React Router is the favorite library for handling routing. The most compelling aspect of this version of the library is that it’s “just React”. The routes are just components that get rendered to the screen when the app is running. They are not defined in external files as done in other frameworks.

Prerequisites

You will need the following: Basic knowledge of React, Git installed on your computer, and NPM installed on your computer.

First of all, locate the empty source files (at the master branch)if you have git installed and clone to your computer using:

Open the folder in your text editor and discover the sub-folders inside.

This post is divided into four subsections according to the folders which are: Basic routing, Nested routing, Nested routing with path parameters and Authenticated routing.

To launch the demos, open a given folder in your terminal then run npm install followed by npm start.

#1. Basic routing

All the demos in this post have been initially created using create-react-app. This brings some benefits such an already configured webpack server that would bundle all the javascript file in our app into a bundle.jsfile that would be attached into the index.html file at run time. Webpack’s dev server when run will listen to any change in our file and update it as the app runs during development.

I’ve created a components/folder to keep all our components. Note that:

• index.js is the entry file to all .js files in our app. This is where Webpack’s bundling will be performed so all .js files should be imported into it.
• App.js file would contain everything pertaining to our React app.

By default, create-react-app does not place App.js in this folder but because I’ve modified the folder structure, I made appropriate changes to the path url importing it into index.js. To learn more about Create-react-app, the reference would be helpful.

Navigate to the first folder (01-basic-routing) and run npm install.

Open the App.js file and you should see the following:





Run npm start and view the app. No changes made yet.

No changes made

Let's install React Router via NPM. With the folder open in your terminal, run

Why react-router-dom? This is because the React router library comprises of three packages: react-router, react-router-dom, and react-router-native. react-router is the core package for the router, whereas the other two are environment specific. You should use react-router-domif you’re building for the web, and react-router-native if you’re on a mobile app development environment using React Native.

Import the following into App.js

Later on, we would get to understand what those components do. All of the routing components depend on BrowserRouter to provide the browser’s HTML5 History APIs to them.

Note that React components have their first letter capitalized so as to identify them differently from default HTML tags.

The History API is an object that lets us manage the current location via history.location as well as previous locations. Think of the location property of the object as an array. The current location is the last item on the array and we manipulate the array through methods such as history.push()orhistory.replace. Whatever manipulation is made on the array will trigger a page transition to the current location. This is what happens behind the scene when using Link and Redirect component as we’ll see soon.

We’ve imported the contents of BrowserRouter into Router variable. We need to wrap our entire app with it so it supplies the needed APIs all throught the app. In app.js do so:

The <Route /> component .

Lets begin exploring the Route component. This component renders a page if the current URL location matches the path prop specified in it. It also accepts component, render and children props.

Let's create ours where its written {/* Routes will go here */}:

But those components don’t exist! Yes, you are right. Again before we create them, lets add more imports to App.js. Import from the HelloComponent.js, AboutComponent.js, and BooksComponent.js using Hello, About, and Booksas variables. The component={} prop uses curly braces to refer to variables not strings.

Note that render is similar to component={} but it lets us define a component inline and right there:

Head over to the empty HelloComponent.js file and paste:

We used a Stateless functional component (hence the arrow function) above. We use them for components that render only static content to a webpage as opposed to components that render stateful/changing content.

If you didn’t notice, we are using bootstrap 4 styles in our App.css file hence the jumbotron class in the div.

Head over to the empty AboutComponent.js file and paste:

Finally, Head over to the empty BooksComponent.js file and paste:

One more thing we need to wrap up this section is the Link component.

                   The <Link></Link> Component

This is replaces the default <a href=""></a> HTML tag. It accepts a to=""prop that points to the URL location we want to go to.

Inside app.js, replace the default anchor tags with Link:

Run npm start from your terminal and see the complete app.

Using Route and Link

How would you render a component if the / URL is visited i.e the landing or home page. Your guess may be to create a route for it:

This is fine but remember that the other paths have / in them. So if we visited other URLs such as /hello, /about and /books, theHome component will keep being rendered by default. To fix this, write another prop exactsetting it to true or just write exact.

This would ensure to Home component is rendered only in cases where the URL exactly matches this:/.

only if the URL matches the path exactly.

Create a new HomeComponent.js file in components/ folder. Paste this in:

Import into App.js

Add to the list of routes

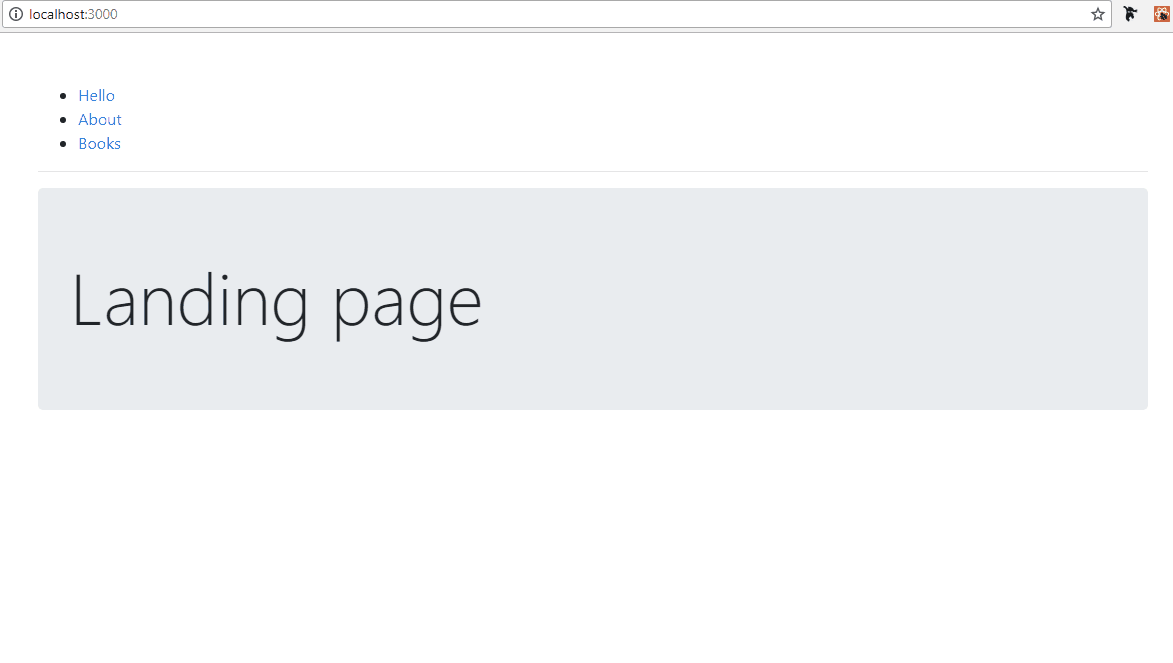

Visit http://localhost:3000 and view

Home component rendered on ‘/’ path

Do some experiment. Remove exact={true} from Home route and see what happens. You’ll see why its important.

Always use exact={true} on the ‘/’ path, else every <Route /> will render.

                   The <Switch></Switch> Component

This will require being wrapped around Route components when needed for implementation. When a URL path is visited, it allows only the first <Route>that matches the path to be rendered.

Earlier we had an issue with / rendering the Home component and that of other paths. If we create a /hello/goodmorning path, what will happen? The components of the /hello and /hello/goodmorning path will be rendered. Switch will help in this case again by choosing only one route to render but the most important route must be arranged to come first.

Just an experiment

Using Switch, we can avoid what happens in the image above but only for URLs other than /. exact={true} handles it for /. Remember that Switchwill pick only the first matching Route. Lets put it to work and see the result.

Furthermore, Switch allows us to specify a route to render if the URL matches no location. For that route, leave the path prop empty.

In summary, Switchwill do the following:

• avoid inclusive route rendering.
• include a catch-all Route at the bottom of our Switch container.

#2. Nested routing

Remember that we could render components via Route inline or by specifying the component:

Or

The component that will be created via Route will automatically be passed the followingprop objects:

• match
• location
• history

We will only explore the use of match as it is helpful for implementing nested routes. The match object contains the following properties:

• params — (object) Key/value pairs parsed from the URL corresponding to the dynamic segments of the path.
• isExact — (boolean) true if the entire URL was matched (no trailing characters).
• path — (string) The path pattern used to match. Useful for building nested <Route>s
• url — (string) The matched portion of the URL. Useful for building nested <Link>s

We want to add new routes under the /book route. They will be books:

• HTML
• CSS
• React

Navigate to the second sub-folder (02-nested-routing)on your terminal and run npm install.

In your code editor, open BookComponent.js and modify:

We’ve demonstrated syntactically that the match object is passed as props. Remember that the classes used as for Bootstrap’s styles to take effect. Don’t forget to import all React Router components after importing React:

We didn’t need to import all of them but we did anyway. Place the routes:

We are using inline component rendering to save time. Now, lets populate the to="" of Link and path="" of Route. Make these changes:

${match.url} evaluates to /books and ${match.path} evaluates to localhost://3000/books. The back ticks used are ES6’s way of concatenating strings containing variables.

Give it a save, run npm start and vie the working app.

Nested routes

import React from 'react';
import {
    BrowserRouter as Router,
    Route,
    Link,
    Switch,
    Redirect
  } from 'react-router-dom';

const Books = ({ match }) => {
    return (
        <div>
            <div className="jumbotron">
                <h1 className="display-3">My Books</h1>
            </div>

<div className="container">
          <div className="row">
              <div className="col-md-3">
          <ul>
              <li><Link to={`${match.url}/html`}>HTML</Link></li>
              <li><Link to={`${match.url}/css`}>CSS</Link></li>
              <li><Link to={`${match.url}/react`}>React</Link></li>
          </ul>
                </div>
                <div className="col-md-9">
                    <Route path={`${match.path}/html`} render={() => { return <h1>HTML by Ducket book</h1> }}/>
                    <Route path={`${match.path}/css`} render={() => { return <h1>CSS by Racheal Andrews</h1> }}/>
                    <Route path={`${match.path}/react`} render={() => { return <h1>React by Fullstack.io book</h1> }}/>
                    <Route path={`${match.path}/:id`} component={Child} />
                </div>
            </div>
            </div>
        </div>
    );
}

const Child = ({ match }) => (
    <div>
      <h3>URL ID parameter: {match.params.id}</h3>
    </div>
);

export default Books;

<Redirect to={{
        pathname: '/login',
        state: { from: props.location }
      }}/>

<ul>
     <li><Link to="/hello">Hello</Link></li>
     <li><Link to="/about">About</Link></li>
     <li>
         <Link to="/books">Books</Link>
     </li>
     <li>
         <Link to="/admin">Admin</Link>
     </li>
</ul>

<Switch>
            <Route exact path="/" component={Home} />
            <Route path="/about" component={About} />
            <Route path="/hello" component={Hello} />
            <Route path="/books" component={Books} />
            <Route path="/login" component={Login}/>
            <PrivateRoute authed={fakeAuth.isAuthenticated} path="/admin" component={Admin} />
          </Switch>

const PrivateRoute = ({ component: Component, ...rest }) => (
  <Route {...rest} render={props => (
    fakeAuth.isAuthenticated ? (
      <Component {...props}/>
    ) : (
      <Redirect to={{
        pathname: '/login',
        state: { from: props.location }
      }}/>
    )
  )}/>
)

const Admin = () => {
  return (
    <div className="jumbotron">
      <h3 className="display-3">Admin Access granted</h3>
    </div>
  );
}

class Login extends React.Component {

    constructor() {
      super();

      this.state = {
        redirectToReferrer: false
      }
      // binding 'this'
      this.login = this.login.bind(this);
    }

    login() {

      fakeAuth.authenticate(() => {
        this.setState({ redirectToReferrer: true })
      })
    }

    render() {
      const { from } = this.props.location.state || { from: { pathname: '/' } }
      const { redirectToReferrer } = this.state;

      if (redirectToReferrer) {
        return (
          <Redirect to={from} />
        )
      }

      return (
        <div className="jumbotron">
            <h1 className="display-3">Login required</h1>
            <p className="lead">You must log in to view the page at {from.pathname}.</p>
            <p className="lead">
              <a className="btn btn-primary btn-lg" onClick={this.login} role="button">Login</a>
            </p>
        </div>
      )
    }
  }

  /* A fake authentication function */
  export const fakeAuth = {

    isAuthenticated: false,
    authenticate(cb) {
      this.isAuthenticated = true
       setTimeout(cb, 100)
    },
  }

Feel free to Comment or Share this post. Thanks for reading!
